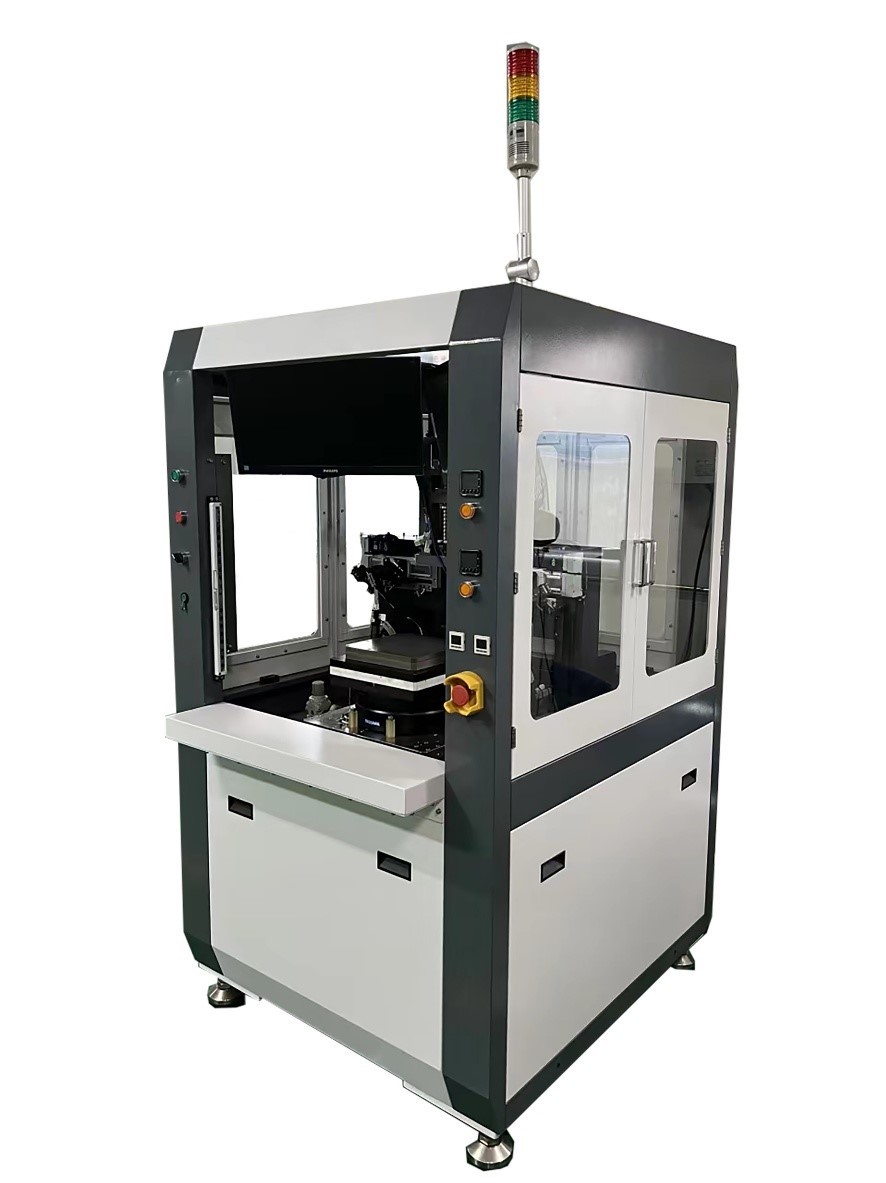

The cutting equipment is a key component of the LTCC/HTCC production line. It operates through computer programming and utilizes machine vision to automatically and precisely control the cutting of multilayer laminated LTCC/HTCC materials marked with alignment marks. Under controlled heating conditions, it performs fast and high-precision cutting to separate the material into individual units. It can also be used in other industries such as HTCC and MLCC.
Maximum Hot Cutting Size: 203.2mm × 203.2mm
Maximum Hot Cutting Thickness: 7mm
Alignment Accuracy (Visual): Y-axis ±0.01mm, θ-axis ±0.005°
Maximum Cutting Speed: 120 cuts/min
Blade Temperature: Room temperature to 100°C
Worktable Temperature: Room temperature to 100°C
Temperature Uniformity: ±3°C
Loading/Unloading Method: Manual
