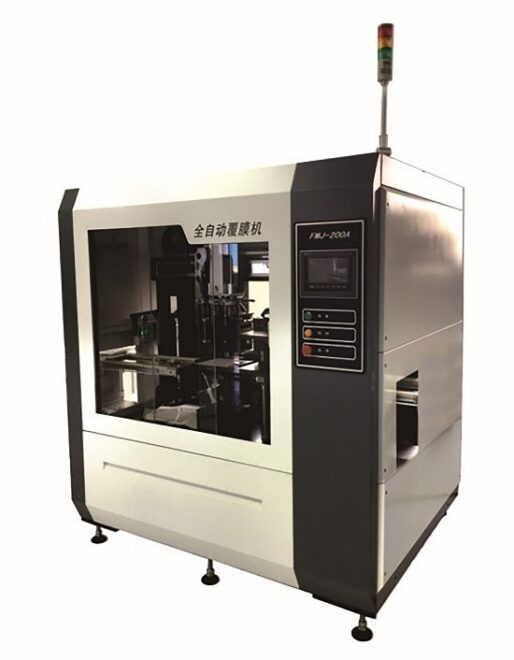

Film Laminator is a fully automatic system with loading and unloading functions. Its main purpose is to apply a layer of micro-adhesive film to the back side of punched green ceramic sheets. It performs automatic cutting and lamination of PET micro-adhesive film. The main process involves a film-feeding robotic arm pulling the PET film to a preset length, followed by automatic cutting. The film is then tightly laminated onto the green sheet under the action of pressure rollers, helping to prevent excessive deformation and contamination during the printing process.
Laminated Green Sheet Thickness: 70–300μm
Lamination Film Thickness: 25–50μm
Lamination Accuracy: ±1mm (based on standard green sheets and qualified adhesive film rolls)
Allowable Deformation of Green Sheet: ±20μm
Supported Green Sheet Sizes: 6-inch / 8-inch
