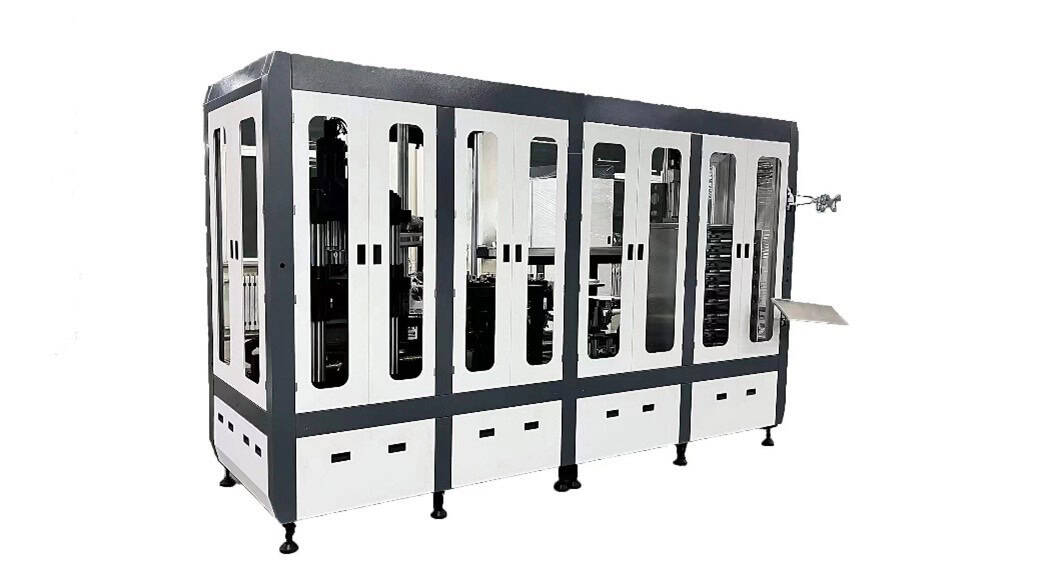

This equipment is one of the key machines in the LTCC/HTCC multilayer substrate production line. It is mainly used for automatic lamination of frameless green sheets. Featuring a visual positioning system, automated operation, high precision, and multi-functionality, it is capable of performing processes such as automatic green sheet loading, precise positioning, high-accuracy handling, dispensing, and vacuum hot surface pressing.
Processable Ceramic Sheet Size: 203mm × 203mm
Maximum Layers per Stack (Single Operation): 30 layers
Loading/Unloading Method: Automatic
Maximum Lamination Height: 5mm
Processable Green Sheet Thickness: 50μm – 500μm
Interlayer Positioning Accuracy: ±10μm (excluding punching error)
Maximum Pressing Force of the Press Plate: 200KN
X/Y Axis Travel of Positioning Table: ±4mm
θ Axis Rotation Range of Positioning Table: ±3°
Interlayer Bonding Method: Vacuum surface pressing
